V2D FOLDER IA4C

Cutting-edge solution for professional document handling

Get consultation
  • Reliability
  • Innovation
  • Custom solutions

  • Folding to A4 size

    Ideal for standard-format blueprints, diagrams, and manuals

  • In-line (with printer)

    Automatically folds documents post-printing, streamlining high-volume technical document processing

  • With Auto-Trimming

    Precision-edged output for professional binding of blueprints and reports

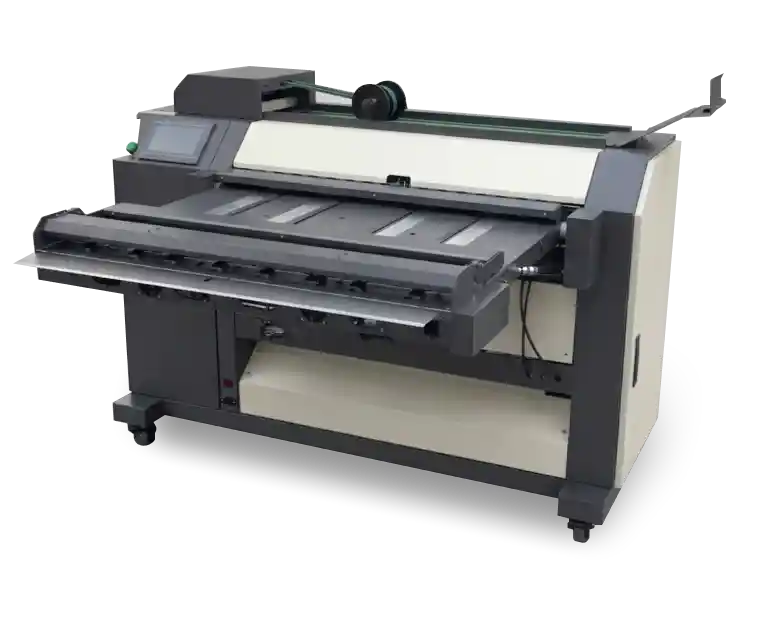

The V2D FOLDER IA4C is a folding machine that combines automation, versatility and reliability. Ideal for those who work with A0, A1, A2, and A3 document formats.   The V2D FOLDER IA4C is a cutting-edge solution that replaces traditional folding machines, offering top functionality and convenience. Streamline your workflows and increase productivity with V2D FOLDER IA4C!

  • 01

    Automatic edge trimming

    Fully automatic folding to A4 format with optional edge trimming for binding. Semi-automatic folding without trimming is available for A0, A1, A2, and A3 formats.

  • 02

    Flexible settings

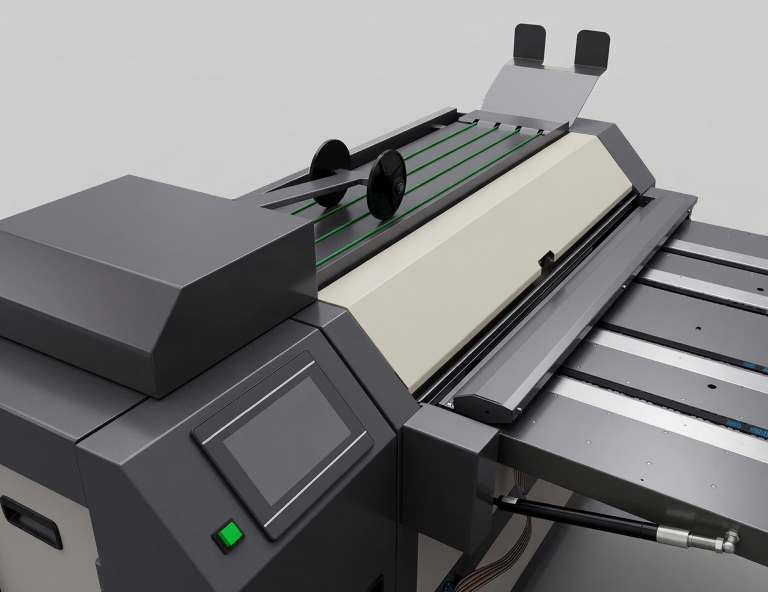

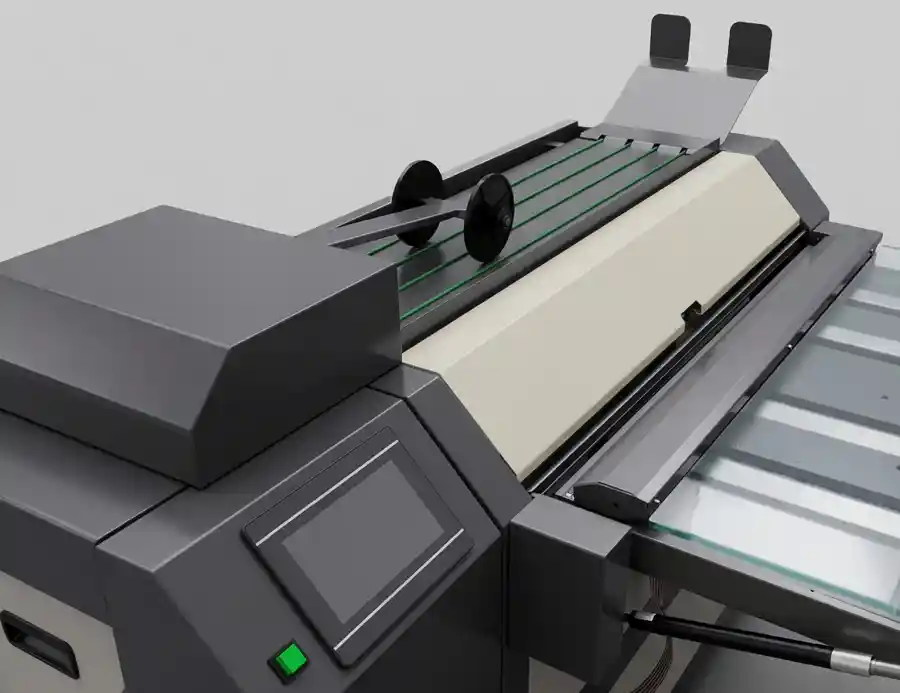

    Turn on the edge trimming function via the user-friendly touch screen. When the function is deactivated, the unit operates as a standard folding machine.

  • 03

    Various folding methods

    Fully automatic folding of large-format documents to A4 format. Modes: with margin, no margin with remainder in the center of the document, no margin with remainder at the end of the document.

  • 04

    Stability and reliability

    The fan-fold axis ensures stability in multiple-size drawing handling. Maximum media weight – up to 120 g/m2.

  • 05

    High speed and accuracy

    Automatic paper feed speed adjustment via touchscreen for flawless results.

  • 06

    Easy-to-use

    Fully automatic platform for A4 cross-folding and semi-automatic for fan-folding.

  • 07

    Additional features

    Speed adjustment, size adjustment, paper jam alarm message, printer synchronization, quick jam elimination.

Technical specifications

Maximum media width 880 mm, 34.6 in
Maximum media length (cross-fold) 2500 mm, 98.4 in
Maximum media length (fan-fold) Unlimited (up to 18 times)
Media weight Up to 120 g/m2 (standard value, depends on the manufacturer)
Output media length 100-880 mm (fan-fold), 150-250 mm (cross-fold); 3.9-35.9 in (fan-fold), 5.9-9.8 in (cross-fold)
Output media width 150-250 mm (cross-fold), 10-160 mm (with edges); 5.9-9.8 in (cross-fold), 0.3-6.2 in (with edges)
User Interface 7-inch LCD touch screen. Optional remote control via IoT
Folding settings Automatic (A4), semi-automatic (A3, A2, A1)
Folding styles Fan-fold, cross-fold, automatic edge trimming, printer syncing
Folding speed 35 m/min (up to 40 m/min when synchronized with printer)
Folding accuracy Size adjustment with up to 1 mm accuracy
Paper feed Manual and automatic feed
Delivery tray capacity 150 sheets (media weight – 80 g/m2)
Drawing output 1. A4 format: top rear of the unit
2. Fan-folding: rear of the unit
Power requirements 220 V
Size (with table), WxDxH 1550 × 600 × 1140 mm (work surface 630 mm); 61 x 23.6 x 44.9 in (work surface 24.8 in)
Weight 300 kg (~661.4 lbs)
