V2D FOLDER OA4C

Cutting-edge solution for professional document handling

Get consultation
  • Reliability
  • Innovation
  • Custom solutions

  • Folding to A4 size

    Ideal for standard-format blueprints, diagrams, and manuals

  • Off-line (standalone operation)

    Manually process pre-printed materials independently, without printer connectivity

  • With Auto-Trimming

    Precision-edged output for professional binding of blueprints and reports

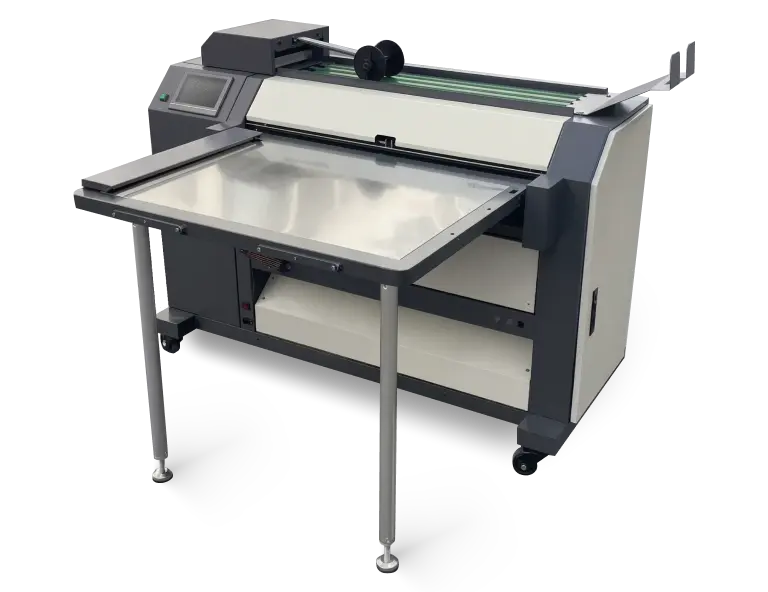

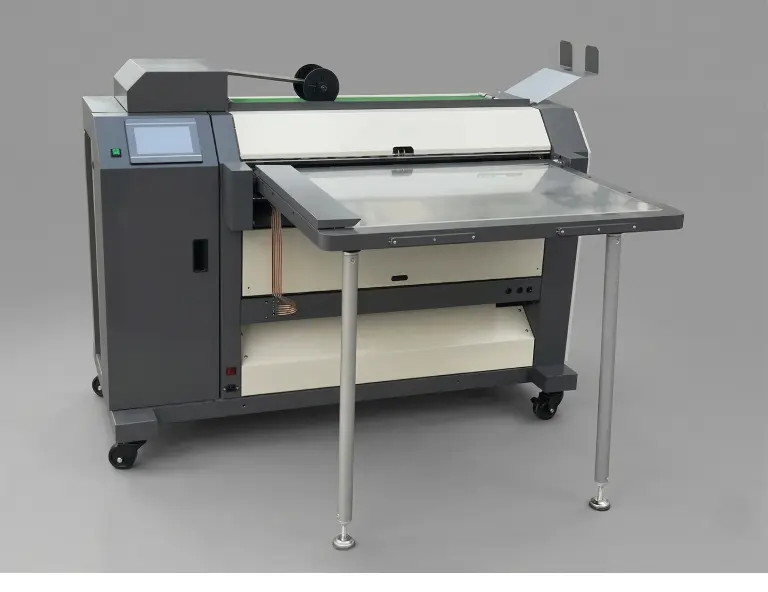

The V2D FOLDER OA4C is an intelligent folding machine that combines high performance, versatility and convenience. Ideal for those who work with A0, A1, A2, and A3 document formats.

The V2D FOLDER OA4C is not just a machine, but a modern solution that replaces traditional folding devices, offering top functionality and convenience. Streamline your workflows and increase productivity with V2D FOLDER OA4C!

  • 01

    Automatic edge trimming

    Fully automatic folding to A4 size with optional edge trimming for binding. Semi-automatic folding without trimming is available for A0, A1, A2, and A3 originals.

  • 02

    Flexible settings

    Turn on the edge trimming function via the user interface. When the function is deactivated, the unit operates as a standard folding machine.

  • 03

    Various folding methods

    Fully automatic A4 folding. Modes: with margin, no margin with remainder in the center of the document, no margin with remainder at the end of the document.

  • 04

    Stability and reliability

    The fan-fold axis ensures stability in multiple-size drawing handling. Maximum media weight – up to 120 g/m2.

  • 05

    High speed and accuracy

    Automatic paper feed speed adjustment with the encoder disk for flawless results.

  • 06

    Easy-to-use

    Fully automatic platform for cross-folding to A4 format and semi-automatic (platform) for fan-folding.

Technical specifications

Maximum media width 914 mm, 35.9 in
Maximum media length (cross-fold) 2500 mm, 98.4 in
Maximum media length (fan-fold) Unlimited (up to 18 times)
Media weight Up to 120 g/m2
Output media length 100-880 mm (fan-fold), 150-250 mm (cross-fold); 3.9-34.6 in (fan-fold), 5.9-9.8 in (cross-fold)
Output media width 150-250 mm (cross-fold), 10-160 mm (with edges); 5.9-9.8 in (cross-fold), 0.3-6.2 in (with edges)

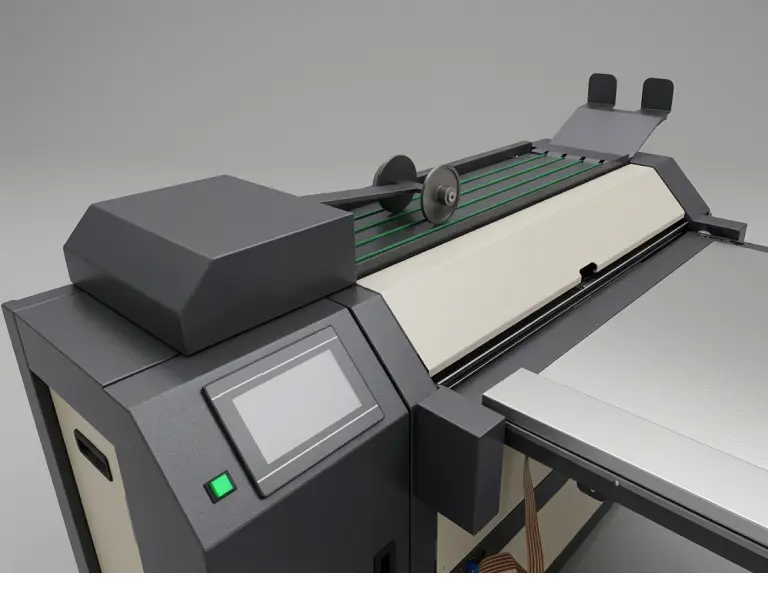

User Interface 7-inch LCD touch screen. Optional remote control via IoT
Folding settings Automatic (A4), semi-automatic (A3, A2, A1)
Folding styles Fan-fold up to 18 times with a cross-fold option. Simultaneously clears paper jams (activates within 5 seconds).
Folding speed 35 m/min (up to 40 m/min when synchronized with printer)
Folding accuracy Size adjustment with up to 1 mm accuracy
Paper feed Manual feed with folding function, movable paper leveling device
Delivery tray capacity Up to 150 sheets (media weight – 80 g/m2)
Drawing output A4 format: top rear of the unit.
Fan-folding: rear of the unit.
Automatic edge trimming for binding Supports A4, A3, A2, A1 formats
Power requirements 220 V
Size (with table), WxDxH 1550 × 600 × 1140 mm (work surface 630 mm); 61 x 23.6 x 44.9 in (work surface 24.8 in)
Weight 300 kg (~661.4 lbs)
