V2D FOLDER IA4

Versatile solution for professional drawings and large-format documents handling

Get consultation
  • Reliability
  • Innovation
  • Custom solutions

  • Folding to A4 size

    Ideal for standard-format blueprints, diagrams, and manuals

  • In-line (with printer)

    Automatically folds documents post-printing, streamlining high-volume technical document processing

  • Without Trimming

    Cost-efficient solution where exact trimming is unnecessary (e.g., internal archives or temporary documents)

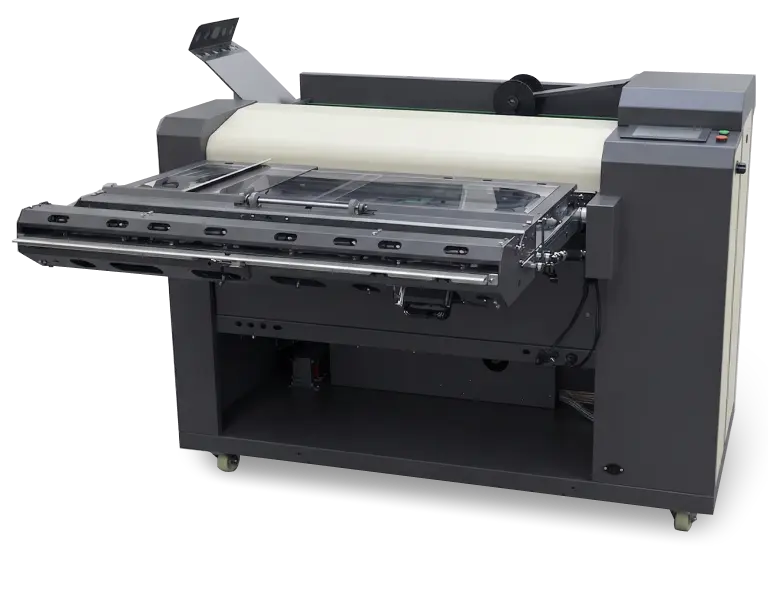

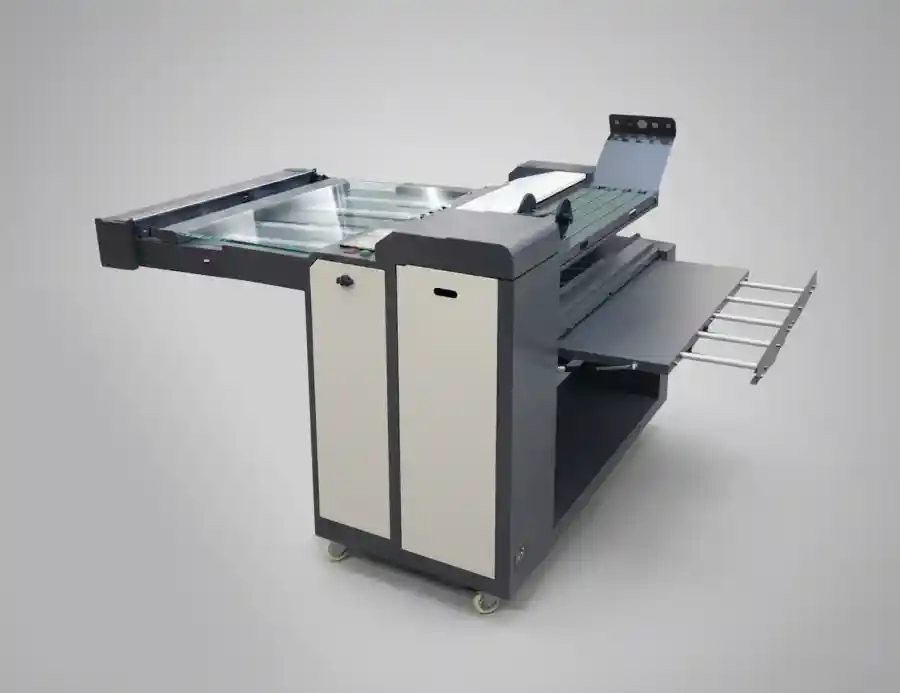

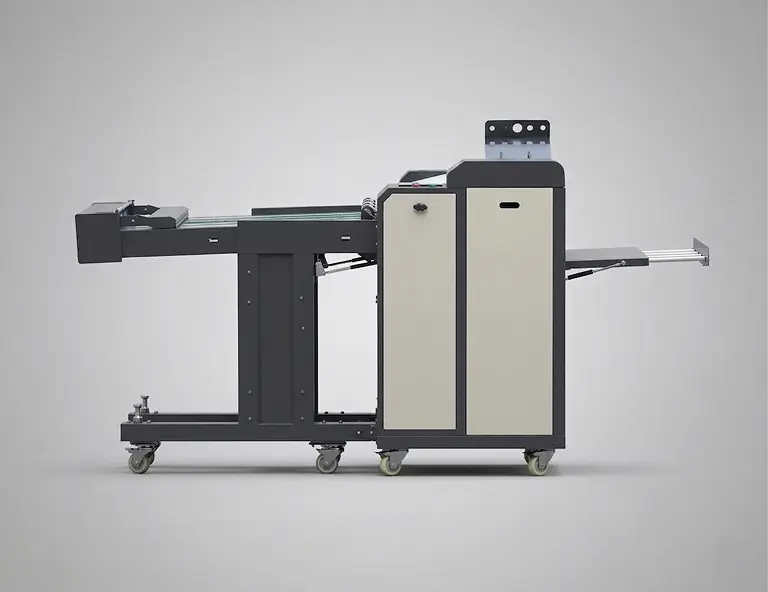

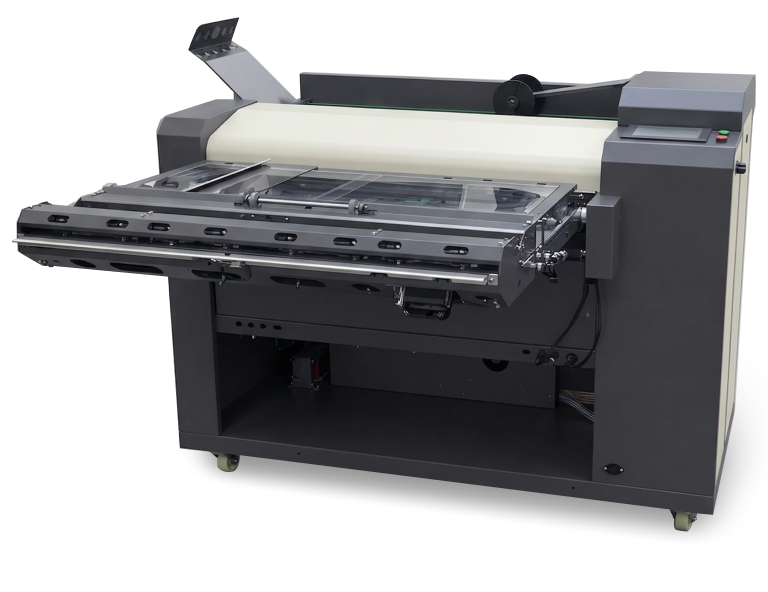

The V2D FOLDER IA4 is an innovative folding machine that combines full automation, flexibility and high productivity. It is the ideal choice for those who work with A4, A3, A2, A1, and even A0 documents, providing accuracy and convenience in drawing handling.

The V2D FOLDER IA4 is a reliable and versatile machine for medium and large businesses that provides high productivity and top-quality document handling. Streamline your workflows with V2D FOLDER IA4!

  • 01

    Automatic and semi-automatic folding

    Fully automatic folding to A4 format (leave or trim edges for binding) and semi-automatic folding of A1, A2, A3 formats with edges.

  • 02

    Various folding methods

    With margin, no margin with remainder in the center of the document, no margin with remainder at the end of the document.

  • 03

    Automatic identification and customization

    Various folding sizes (up to 3) can be set and sequenced.

  • 04

    Double drawing output

    Top output for A3, A2, A1 formats and bottom output for A4 format.

  • 05

    Versatility

    Can handle paper weights up to 120 g/m², including thermal paper and glossy materials.

  • 06

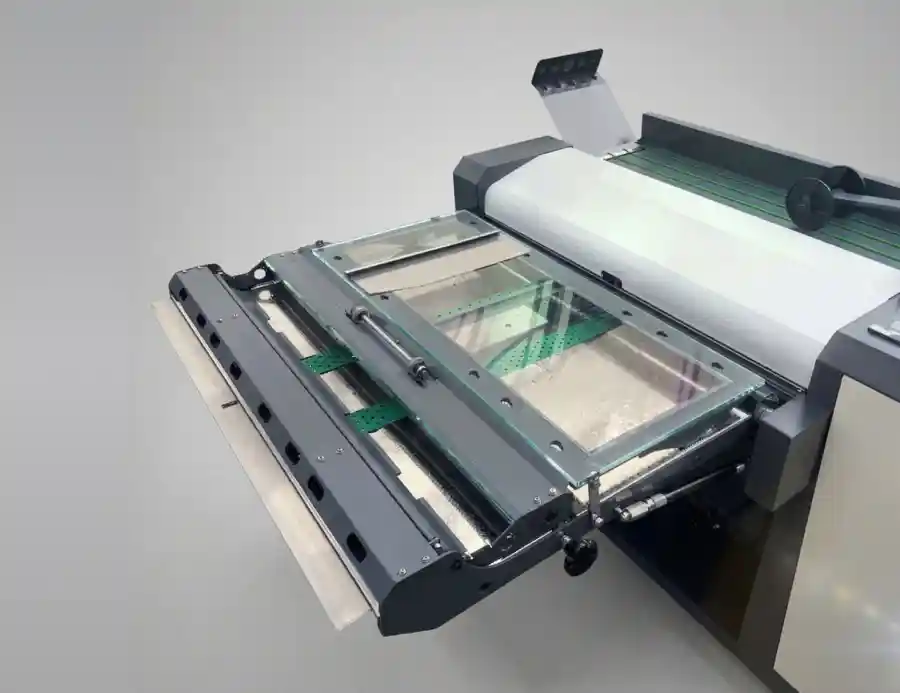

    Integrated worktable

    Manual and automatic paper feeding, storage for unfolded drawings, and conveniently located outputs for A4 and large-format drawings.

Technical specifications

Maximum media length 100-880 mm, 3.9-34.6 in
Maximum media width 880 mm, 34.6 in
Maximum media length (cross-fold) 2500 mm, 98.4 in
Media weight Up to 120 g/m2 (standard value, depends on the manufacturer)
Output media length 100-880 mm (fan-fold), 150-250 mm (cross-fold); 3.9-35.9 in (fan-fold), 5.9-9.8 in (cross-fold)
Output media width 150-250 mm (cross-fold), 10-160 mm (with edges); 5.9-9.8 in (cross-fold), 0.3-6.2 in (with edges)
User Interface 7-inch touch screen
Folding settings Automatic (A4), semi-automatic (A3, A2, A1)
Folding styles With margin
No margin with remainder in the center of the document
No margin with remainder at the end of the document
Folding speed 35 m/min (up to 45 m/min with increasing speed)
Folding accuracy Flexible folding settings adjustment, up to 1 mm accuracy
Paper feed Automatic and semi-automatic
Delivery tray capacity Up to 150 sheets (media weight – 80 g/m2)
Drawing output Double output: automatic (A4) and semi-automatic (A1, A2, A3)
Power requirements 220 V
Size (with table), WxDxH 1450 × (650 + work surface) × 1100 mm; 57 x (25.5 + work surface) x 43.3 in
Weight 290 kg (~639 lbs)
