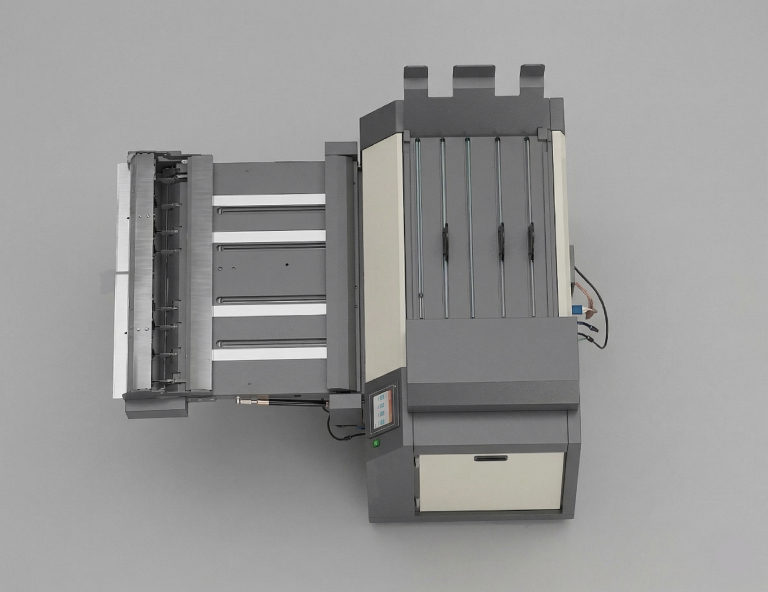

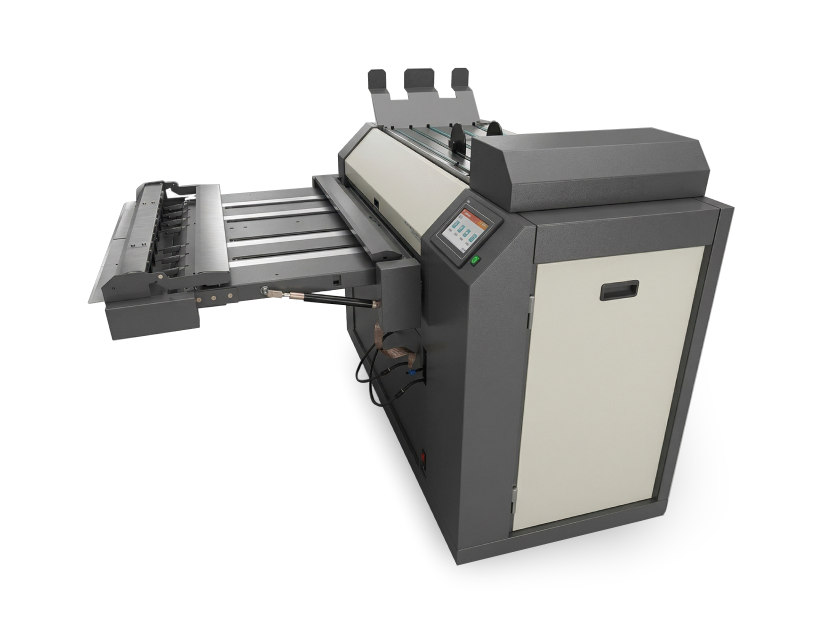

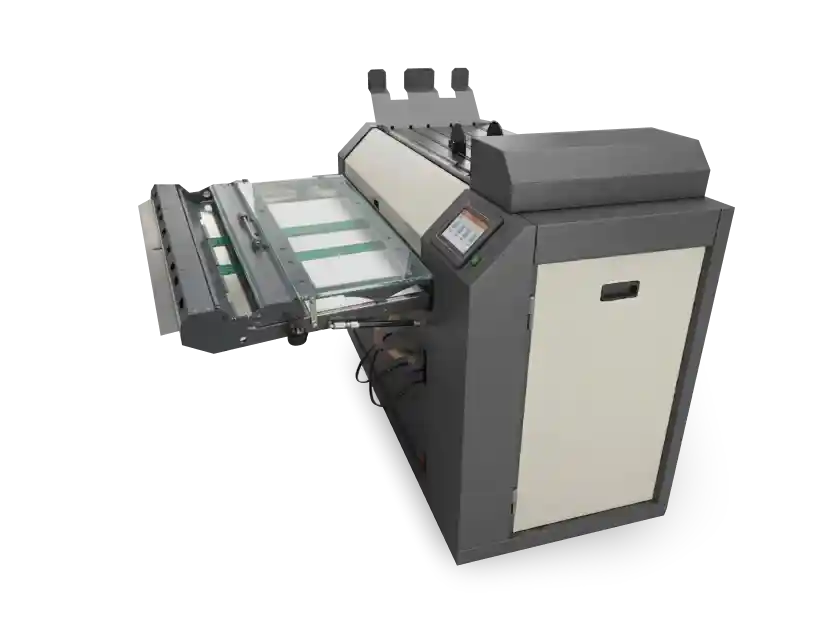

V2D FOLDER IA3

A modern folding machine that offers full automation for folding documents to A3 and A4 formats. It is the ideal choice for those who value precision, productivity, and versatility.

Get consultation
  • Reliability
  • Innovation
  • Custom solutions

  • Folding to A3 and A4 formats

    Ideal for standard documents, brochures, and everyday office use with longitudinal and cross folding options

  • In-line (with printer)

    Automatically folds documents post-printing, streamlining high-volume technical document processing

  • Without Trimming

    Cost-efficient solution where exact trimming is unnecessary (e.g., internal archives or temporary documents)

The V2D FOLDER IA3 is not just a machine – it’s an intelligent solution for professionals, combining high performance, ease of use, and reliability. Optimize your workflows and achieve flawless results with the V2D FOLDER IA3!

  • 01

    Fully automatic folding

    Longitudinal and cross folding to A3 and A4 formats, with or without the option to leave edges for binding.

  • 02

    Various folding methods

    Folding with a margin, folding without a margin with the remainder in the center of the document, and folding without a margin with the remainder at the end of the document.

  • 03

    Semi-automatic function

    Longitudinal folding of A1 and A2 formats, leaving edges for binding. Drawings are output through the rear of the machine.

  • 04

    Powerful software

    Flexible adjustment of folding sizes and the ability to modify synchronised device models without restrictions.

Technical specifications

Maximum media width 880 mm, 34.6 in
Maximum media length (cross-fold) 2500 mm, 98.4 in
Maximum media length (longitudinal fold) Unlimited (up to 20 folds)
Media weight Up to 120 g/m² (standard value, depends on the manufacturer)
Output document length 150–880 mm (longitudinal), 150–420 mm (cross-fold); 5.9–34.6 in (longitudinal), 5.9–16.5 in (cross-fold)
Output document width 150–420 mm (cross-fold), 10–360 mm (with edges left); 5.9–16.5 in (cross-fold), 0.4–14.2 in (with edges left)
User Interface 7-inch touchscreen LCD (supports Chinese and English)
Folding type Fully automatic (A4, A3), semi-automatic (A2, A1)
Folding functions Longitudinal folding up to 20 folds (without cross-fold)
Longitudinal folding up to 16 folds with cross-fold capability
Fixed semi-automatic paper output
Folding speed 30 m/min (up to 40 m/min with speed increase)
Folding accuracy Digital size adjustment with 1 mm accuracy
Paper feed method Automatic and semi-automatic
Delivery tray capacity 150 sheets (for 80 g/m² paper)
Drawing output positions A4 format: top rear of the machine Large-format drawings: rear of the machine
Power requirements 220 V
Dimensions (with table unfolded), WxDxH 1580 × 690 × 1060 mm (work surface 750 mm); 62.2 × 27.2 × 41.7 in (work surface 29.5 in)
Weight 421 kg (~928 lbs)
